Carrier preparation
Panasonic PLC, Panasonic photoelectric cx442 and lef intermediate relay control system are adopted to ensure stable and reliable operation.
Touch screen display operation, with fault audible and visual alarm and automatic diagnosis functions.
Step motor control, speed and distance adjustable.
Imported steel belt drive, accurate positioning, durable.
Taiwan Shangyin linear slide rail is adopted, with good slidability, durability and accurate positioning,
A variety of modes can be selected to meet a variety of production processes, and the operation is simple and convenient.
The conveying height is 900mm & plusmn; thirty
Use power: & plusmn; Single phase 220V 50 / 60Hz 100W

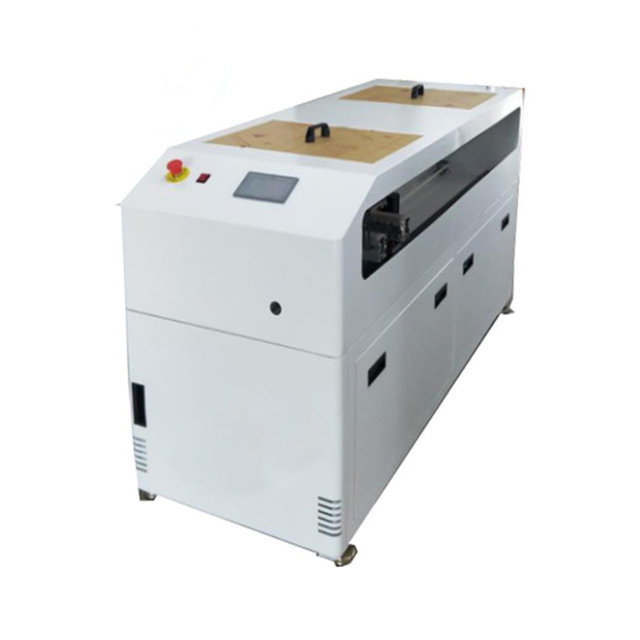

Translational single trolley drive stepper drive stepper motor
Trolley guide rail transmission, double stepping motor transmission
Translation mode: first in first out mode
Closed design ensures the highest level of safety protection
The top safety cover can be opened to facilitate the handling of machine hardware during maintenance
Easy to use touch screen function control interface
Stable and balanced width adjustment device (manual control screw adjustment)
The transfer distance can be arbitrarily set,
Compatible standard SMEMA interface
The top cover of the equipment is equipped with a visual window to safely monitor the production and working conditions
The transmission distance can be set arbitrarily
The distance of parallel transfer machine can automatically convert the weighing distance (set the PCB width)
|
Serial number: |
Scope of application |
|
|
|
name |
Translation machine |
|
one |
PCB board size (mm) |
50X50~500X300mm; |
|
two |
PCB thickness |
0.6~3.0mm |
|
Machine body |
||
|
one |
Body size L * w * H (mm) |
600*1275*1000mm |
|
two |
Body weight |
350KG |
|
three |
structure |
1.5mm steel structure, anti-static plastic spraying treatment on the surface, and M16 shock-absorbing foot cup at the bottom |
|
Control system |
||
|
one |
Power Supply |
Single phase 220V |
|
two |
Starting power / no-load power |
200W |
|
three |
compressed air |
5-6KG |
|
four |
Fixed edge |
Front fixing (rear fixing can be customized) |
|
five |
Transmission direction |
Left to right (customized right to left) |
|
six |
Conveying height |
900± 50mm |
|
seven |
Repeatability |
Automatic calibration of accuracy and distance & plusmn; 0.5mm |
|
eight |
Transmission speed |
0~2m/Sec |
|
nine |
Withstand voltage |
AC terminal to ground 1500vac, 1min |
|
ten |
Use environment |
Environment without corrosive gas and dust |
|
eleven |
anti-interference |
Voltage noise: 1000vp-p, wave width 1US, 1min |
|
twelve |
Transfer transfer |
Stepper motor (42 * 48) |
|
thirteen |
Parallel load transfer |
86 high precision stepping motor |
|
fourteen |
Translation drive |
86 high-precision digital belt cooling fan driver is adopted, which works continuously, is stable and reliable, and is very strong |
|
fifteen |
Translational load transmission device |
Imported steel wire synchronous belt (durable and high precision) |
|
sixteen |
PLC |
Panasonic |
|
seventeen |
touch screen |
Full color display control ea4.3 inch |
|
eighteen |
Groove type photoelectric |
OMRON |
|
nineteen |
Square photoelectric |
Panasonic cx442 or ELCO Optoelectronics |
|
twenty |
Driver |
Xinlichuan digital mt86, mt57 |
|
twenty-one |
Antistatic belt |
3.8mm wide conveyor belt (anti jamming function) is adopted for the non-contact guide rail |
|
twenty-two |
Pan mainline |
Adopt imported high-speed disassembly and wear-resistant special mainline |
