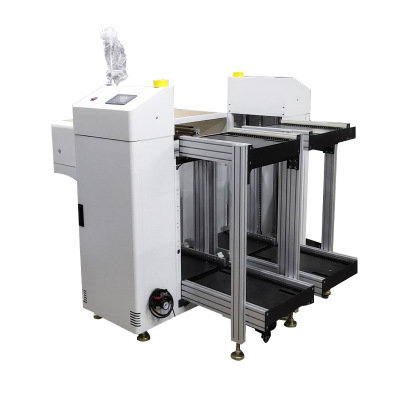

Product features:
· External structure: 3mm thick plate metal structure and aluminum profile are put into the frame, and the surface is sprayed with white ripple.
· The microcomputer original Panasonic PLC control system works stably and reliably.
· Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.
· Multiple sound and light and prompt alarm functions in the touch screen.
· The lifting step of the material rack can be set according to the PCB thickness.
· With automatic counting function, it is convenient for production statistics.
· Humanized design ensures that the PCB is not broken and improves the output capacity
· Lower connecting and receiving PCB board, pushing the board to the material frame by motor
· The stepping motor is used to push the plate, and the strength and speed can be set on the touch screen,
· The plate pushing device uses Omron slot type inductor to protect the PCB from being pushed
· Pushing the PCB board can set the travel distance of pushing the PCB board in the touch screen
· The OK plate is loaded into the front frame, and the ng plate is transferred to the rear frame,
· Double line numbers distinguish ng \ OK
Scope of application
Name: 825ng
Applicable material frame size: 355 * 320 * 563mm
PCB size (mm): 350 * (50-250)
PCB thickness: 0.6-3.0mm
Body size L * w * H (mm): 1580 * 1450 * 1250
Body weight: 350kg
Control system
Power supply: single phase 220V
Starting power / no-load power: 300W
Lifting step: 10, 20, 30, 40, 50 (mm) can be set arbitrarily
Compressed air: 5-6kg
Fixed edge: front fixed (can be customized for rear fixed)
Transmission direction: left to right (customized right to left)
Transfer height: 900 & plusmn; 20mm
Step selection: 1-5 steps (10mm \ step)
Withstand voltage: AC terminal to ground 1500vac, 1min
Operating environment: no corrosive gas and dust
Anti interference: voltage noise: 1000vp-p, wave width: 1US, 1 minute
Transfer, connect and push PCB board: adopt stepping motor (42 * 48)
Parallel transfer sub ng \ OK PCB: 86 high precision stepping motor
Translation driver: 86 high-precision digital belt cooling fan driver is used for continuous operation, which is stable and reliable
Translational load transmission device: imported steel wire synchronous belt (durable, high accuracy)
Ng line number: automatically moved to the ng storage frame (the storage frame can automatically enter and exit)
OK line number: automatically enter the OK frame through the translation table (the storage material frame can be automatically entered and exit)
PLC: Panasonic
Touch screen: full color display control ea4.3 inch
Slot type photoelectric: OMRON
Square photoelectric: Panasonic cx442
Driver: xinlichuan digital mt86
Driver: xinlichuan digital mt57
Plastic chain: 40B high wear-resistant thousand bird type
Lifting motor: 90W 1:9 medium and large motor
Conveying frame motor: 15w1:30 constant speed medium and large motor
