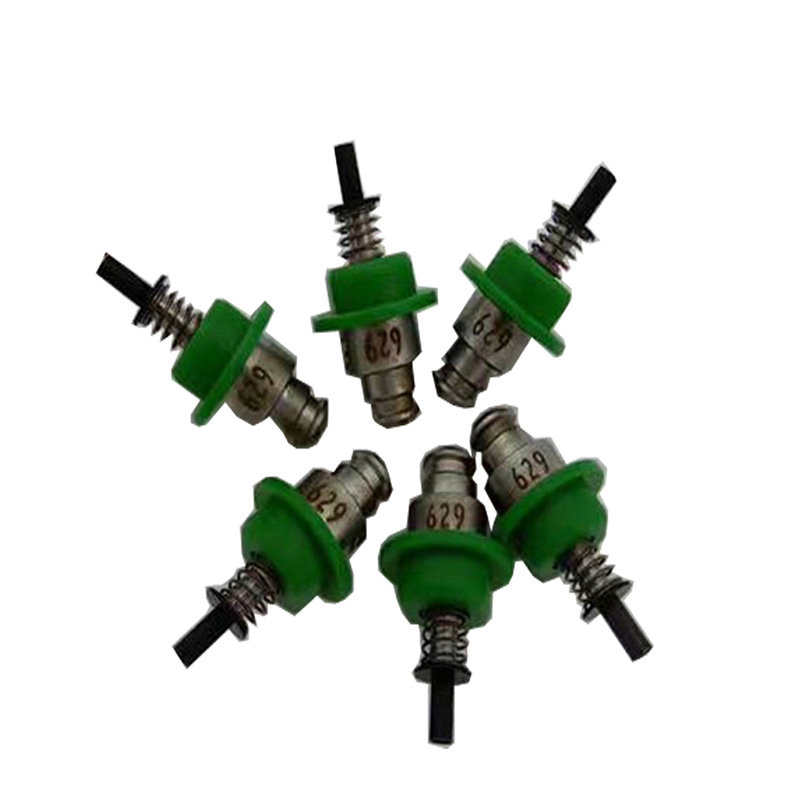

Patch machine suction nozzle # 517 # 518 # 544 # 558 # 629 suction nozzle
  • Patch machine suction nozzle # 517 # 518 # 544 # 558 # 629 suction nozzle
Patch machine suction nozzle # 517 # 518 # 544 # 558 # 629 suction nozzle
Patch machine suction nozzle # 517 # 518 # 544 # 558 # 629 JUKI suction nozzle original imported brand new

Details

Specifications

Patch machine suction nozzle # 517 # 518 # 544 # 558 # 629 JUKI suction nozzle original imported brand new

1

The models of JUKI suction nozzles of Laiji company are very complete. The JUKI 2000 series suction nozzles include:
Juki500 / 501 / 502 / 503 / 504 / 505 / 506 / 507 / 508 / 509 / 512 / 513 / 514 / 515 / 516 / 517 / 618 / 629, etc
JUKI suction nozzle 500 nozzle asembl y 40011046
JUKI suction nozzle 501 nozzle asembl y 40001339
JUKI suction nozzle 502 nozzle asembl y 40001340
JUKI suction nozzle 503 nozzle asembl y 40001341
JUKI suction nozzle 504 nozzle asembl y 40001342
JUKI suction nozzle 505 nozzle asembl y 40001343
JUKI suction nozzle 506 nozzle asembl y 40001344
JUKI suction nozzle 507 nozzle asembl y 40001345
JUKI suction nozzle 508 nozzle asembl y 40001346
JUKI suction nozzle 510 nozzle asembl y e36157290a0
JUKI suction nozzle 511 nozzle asembl y e36167290a0


RS series suction nozzle JUKI Mounter RS-1 suction nozzle JUKI 7501 suction nozzle 7502 suction nozzle 7503 suction nozzle 7504 suction nozzle 7505 suction nozzle 7506 suction nozzle 7507 suction nozzle 7508 suction nozzle


Introduction to common components of suction nozzle

 10463104836_899463692


JUKI JUKI 750 / 760 machine 101 / 102 / 103 / 104 / 105 / 106
JUKI JUKI 750 / 760 machine 201 / 202 / 203 / 204
JUKI juki2050 / 2060 machine 500 / 501 (single hole / double hole)
JUKI juki2050 / 2060 machine 502 / 503 / 504 / 505 / 506 / 507 / 508
JUKI juki2050 / 2060 machine 510 / 511 / 512
JUKI juki2050 / 2060 machine 517 / 518 / 520 / special type
JUKI juki710 machine No. 1 / 2 / 3

A1 502 suction nozzle is commonly used for small-sized devices such as 0402 0603
A2 503 suction nozzle is commonly used for 0603 0805 and other size devices
A3 504 suction nozzle is commonly used for devices, lamp beads, etc
A4 505 nozzle is commonly used for s0p-8, 5050, 3528, etc., and is common to 504 nozzle
A5 506 is commonly used for 5050 so-4 SOT-223 and other large devices
507 508 is commonly used for larger chips such as QFP and LQFP
